Commands

Table of Contents

Meaning of \quad discussion

The word quad is a traditional term in typography. It comes from Italian quadratone (big square). In old fashioned metal typography it meant a square piece of metal lower than type height that could be inserted between types for spacing them.

Put comment lines howto

Put matrices howto

\begin{matrix}
a & b \\
c & d
\end{matrix}
\[\begin{matrix} a & b \\ c & d \end{matrix} \]
\begin{pmatrix}
a & b \\
c & d
\end{pmatrix}
\[\begin{pmatrix} a & b \\ c & d \end{pmatrix} \]
\begin{bmatrix}
a & b \\
c & d
\end{bmatrix}
\[\begin{bmatrix} a & b \\ c & d \end{bmatrix} \]
\begin{vmatrix}
a & b \\
c & d
\end{vmatrix}
\[\begin{vmatrix} a & b \\ c & d \end{vmatrix} \]
\begin{Vmatrix}
a & b \\
c & d
\end{Vmatrix}
\[\begin{Vmatrix} a & b \\ c & d \end{Vmatrix} \]
\begin{equation}
\left[\begin{array}{cc|c}
  1 & 2 & 3\\
  4 & 5 & 6
\end{array}\right]
\end{equation}
\[\begin{equation} \left[\begin{array}{cc|c} 1 & 2 & 3\\ 4 & 5 & 6 \end{array}\right] \end{equation} \]

Label \(Ax = b\) under a matrix howto

\begin{align}
\mathop{\begin{pmatrix}
    a & b \\
    c & d
\end{pmatrix}}_{\textstyle A}
\times
\mathop{\begin{pmatrix}
    x1 \\
    x2
\end{pmatrix}}_{\textstyle x\vphantom{A}}
=
\mathop{\begin{pmatrix}
    b1  \\
    b2
\end{pmatrix}}_{\textstyle b\vphantom{A}}
\end{align}
\[\begin{align} \mathop{\begin{pmatrix} a & b \\ c & d \end{pmatrix}}_{\textstyle A} \times \mathop{\begin{pmatrix} x1 \\ x2 \end{pmatrix}}_{\textstyle x\vphantom{A}} = \mathop{\begin{pmatrix} b1 \\ b2 \end{pmatrix}}_{\textstyle b\vphantom{A}} \end{align} \]

Put horizontal spaces howto

Commands listed in ascending order
  • \, (\thinmuskip)
  • \> (\medmuskip)
  • \; (\thickmuskip)
Some others
  • \enspace inserts a space of .5em in text or math mode;
  • \quad inserts a space of 1em in text or math mode;
  • \qquad inserts a space of 2em in text or math mode;
  • \kern <len>
  • \hskip <len>
  • \hspace{<len>}
  • \hphantom{<stuff>}
  • \hfill
  • etc.

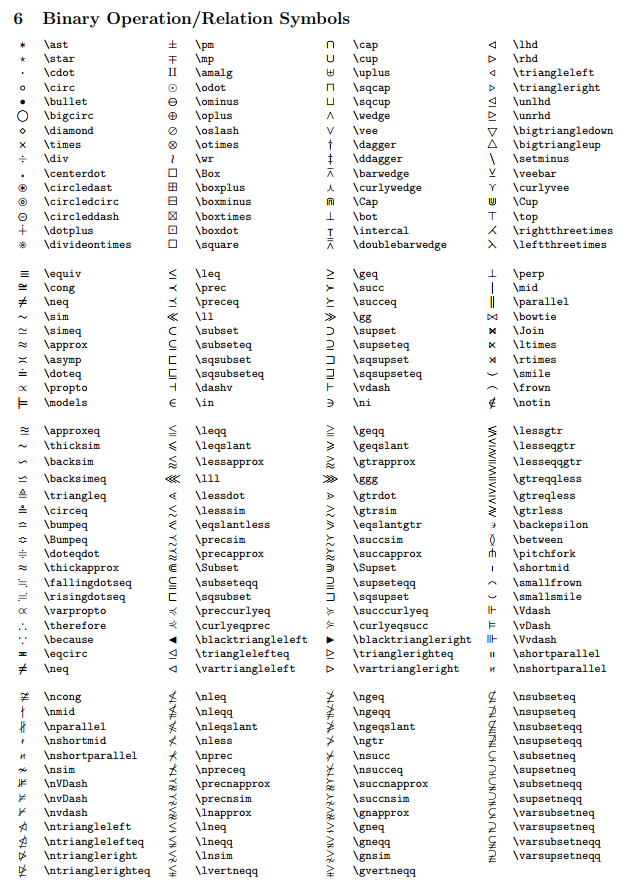

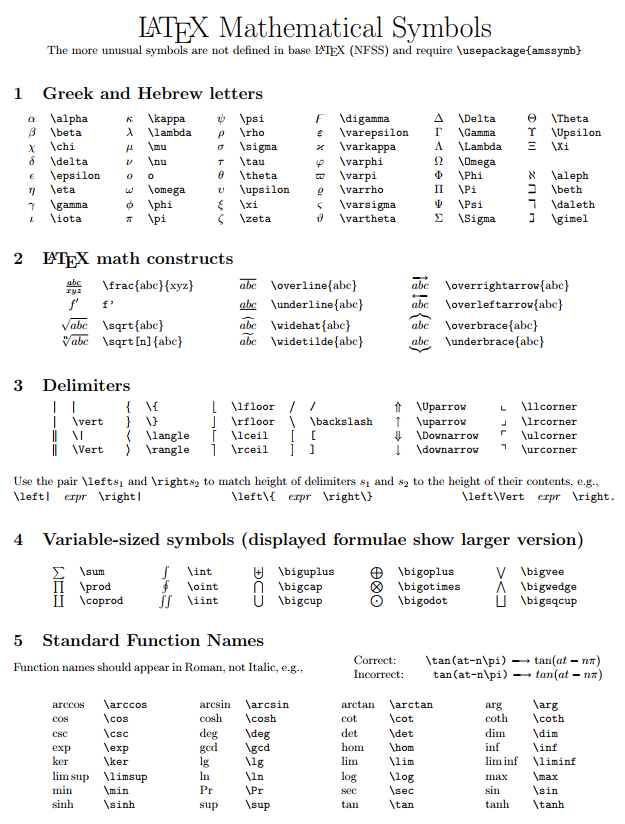

Mathematical Symbols reference
