Overview

image: ruby:2.1
services:
  - postgres

before_script:
  - bundle install

after_script:
  - rm secrets

stages:
  - build
  - test
  - deploy

job1:
  stage: build
  script:
    - execute-script-for-job1
  only:
    - master
  tags:
    - docker

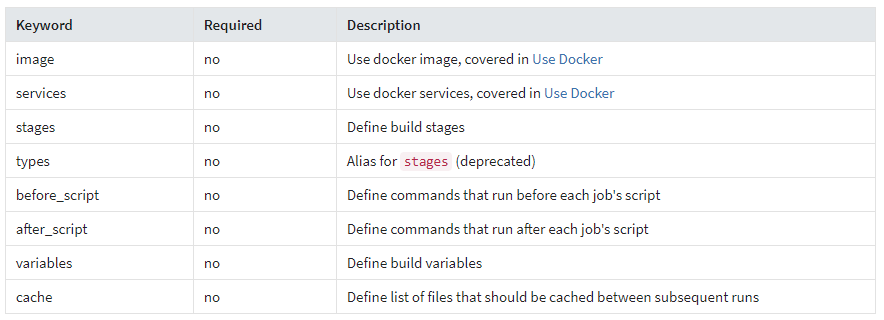

Reference

before_script

• Used to define the command that should be run before all jobs.
• This has to be an array or a multi-line string.

after_script

• Used to define the command that should be run after all jobs.
• This has to be an array or a multi-line string.

stages

• Used to define stages that can be used by jobs.

stages:
  - build
  - test
  - deploy

1. First, all jobs of build are executed in parallel.
2. If all jobs of build succeed, the test jobs are executed in parallel.
3. If all jobs of test succeed, the deploy jobs are executed in parallel.
4. If all jobs of deploy succeed, the commit is marked as success.
5. If any of the previous jobs fails, the commit is marked as failed and no jobs of further stage are executed.

types

• Alias for stages

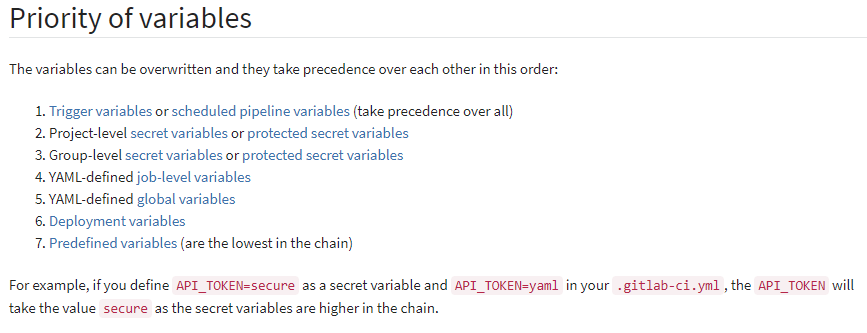

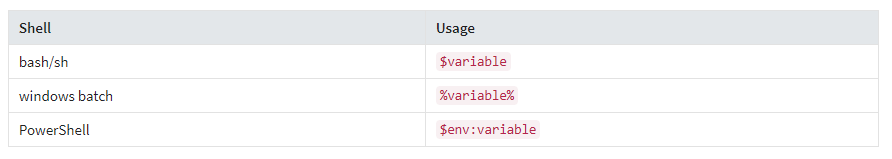

variables

• All variables are set as environment variables in the build environment
• These variables can be later used in all executed commands and scripts.

variables:
  DATABASE_URL: "postgres://postgres@postgres/my_database"
  LS_CMD: 'ls $FLAGS $$TMP_DIR'
  FLAGS: '-al'
job_name:
  script:
    - echo $CI_JOB_ID     # Defined by CI
    - echo $DATABASE_URL  # Defined in `variables`
    - 'eval $LS_CMD'      # will execute 'ls -al $TMP_DIR'

Note: Integers (as well as strings) are legal both for variable's name and value. Floats are not legal and cannot be used.

cache

By default caching is enabled and shared between pipelines and jobs, starting from GitLab 9.0

cache:
  paths:
  - my/files

rspec:
  script: test
  cache:
    key: rspec
    paths:
    - binaries/  # Locally defined cache overrides globally defined options.

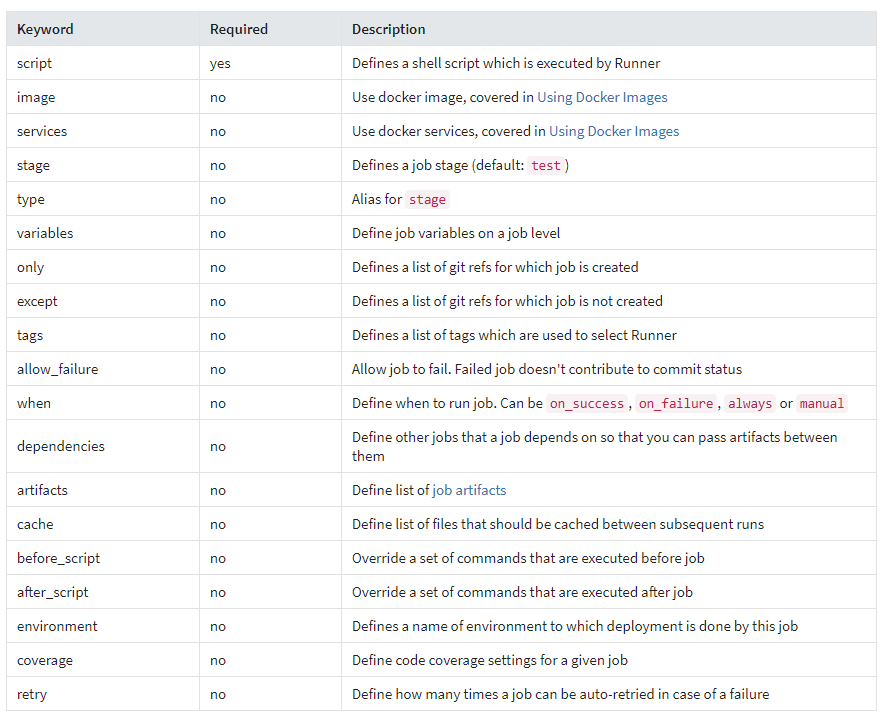

Jobs

• https://docs.gitlab.com/ee/ci/yaml/#jobs

job_name:
  script:
    - rake spec
    - coverage
  stage: test
  only:
    - master
  except:
    - develop
  tags:
    - ruby
    - postgres
  allow_failure: true

script

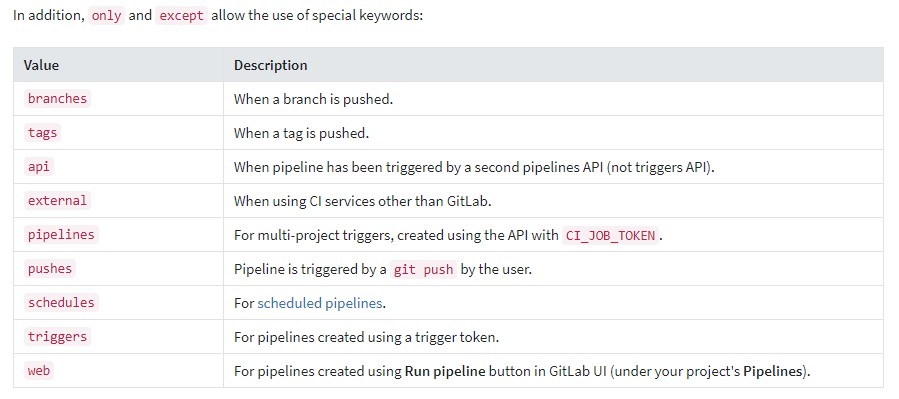

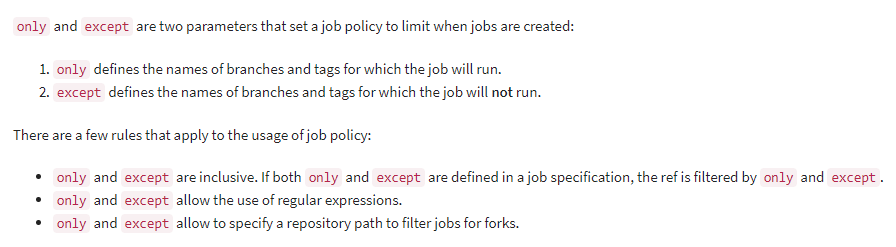

only and except

• In the example below, job will run only for refs that start with issue-, whereas all branches will be skipped:

job:
  # use regexp
  only:
    - /^issue-.*$/
  # use special keyword
  except:
    - branches

Job variables

• it overrides the global YAML job variables and predefined ones

job_name:
  variables: {}

tags

• Used to select specific Runners from the list of all Runners that are allowed to run this project.

job:
  tags:
    - ruby
    - postgres

artifacts

• Used to specify a list of files and directories which should be attached to the job after success.

artifacts:
  paths:
  - binaries/
  - .config

dependencies

• Used in conjunction with artifacts and allows you to define the artifacts to pass between different jobs.

Note that artifacts from all previous stages are passed by default.

build:osx:
  stage: build
  script: make build:osx
  artifacts:
    paths:
    - binaries/

build:linux:
  stage: build
  script: make build:linux
  artifacts:
    paths:
    - binaries/

test:osx:
  stage: test
  script: make test:osx
  dependencies:
  - build:osx  # only downloads artifacts from build:osx

test:linux:
  stage: test
  script: make test:linux
  dependencies:
  - build:linux  # only downloads artifacts from build:linux

# downloads both ~artifacts~ because of the stage precedence
deploy:
  stage: deploy
  script: make deploy

Special YAML features

Anchors

.job_template: &job_definition  # Hidden key that defines an anchor named 'job_definition'
  image: ruby:2.1
  services:
    - postgres
    - redis

test1:
  <<: *job_definition           # Merge the contents of the 'job_definition' alias
  script:
    - test1 project

test2:
  <<: *job_definition           # Merge the contents of the 'job_definition' alias
  script:
    - test2 project

Terminology

Topics

cache vs artifacts,dependencies

• artifacts are created during a run and can be used by the following JOBS of that very same currently active run.
• caches can be used by following RUNS of that very same JOB (a script in a stage, like 'build' in my example).

How-to
