Chaining
Selecting
Modifying
Joining
Events
Control
Locals
Thinking with Joins
How Selections Work
Nested Selections
General Update Patterns
Get the computed width and height for an arbitrary element

Chaining

d3.selectAll("p")
  .attr("class", "graf")
  .style("color", "red");

The code above is equivalent to:

var p = d3.selectAll("p");
p.attr("class", "graf");
p.style("color", "red");

By convention, selection methods that return the current selection use four spaces of indent, while methods that return a new selection use only two.

d3.select("body")
  .append("svg")
    .attr("width", 960)
    .attr("height", 500)
  .append("g")
    .attr("transform", "translate(20,20)")
  .append("rect")
    .attr("width", 920)
    .attr("height", 460);

Selecting

Based on W3C selector strings

`d3.selection()` reference

Selects the root element, document.documentElement.
Can be used to test for selections, like instance of d3.selection
Can be used to extend the selection prototype.

`d3.select(selector)` reference

Selects the first element that matches the specified selector string.
If no elements match the selector, returns an empty selection.

selector can also be a specified DOM node.

d3.selectAll("p").on("click", function() {
  d3.select(this).style("color", "red");
});

`d3.selectAll(selector)` reference

Selects all elements that match the specified selector string.
The elements will be selected in document order.
If no elements in the document match the selector, returns an empty selection.
If the selector is not a string, instead selects the specified array of nodes.

`selection.select(selector)` reference

For each selected element, selects the first descendant element that matches the specified selector string.
selector can be a function which accepts datum, index and nodes and returns an element or null.

`selection.selectAll(selector)` reference

Similar to d3.selectAll(selector) and selection.select(selector).
If no element matches the specified selector for the current element, the element at the current index will be null in the returned selection.

A funciton selector example:

var sibling = d3.selectAll("p").selectAll(function() {
  return [
    this.previousElementSibling,
    this.nextElementSibling
  ];
});

`selection.filter(filter)` reference

Filters the selection, returning a new selection that contains only the elements for which the specified filter is true.
The filter may be specified either as a selector string or a function.

Almost equivalent examples:

var even = d3.selectAll("tr").filter(":nth-child(even)");
var even = d3.selectAll("tr:nth-child(even)");
var even = d3.selectAll("tr").filter(function(d, i) { return i & 1; });
var even = d3.selectAll("tr").select(function(d, i) { return i & 1 ? this : null; });

`selection.merge(other)` reference

Returns a new selection merging this selection with the specified other selection.

Modifying

https://github.com/d3/d3-selection#modifying-elements

`selection.attr(name[, value])` reference

The function’s return value is then used to set each element’s style property.
A null value will remove the style property.

`selection.classed(names[, value])`

`selection.style(name[, value[, priority]])` reference

Caution: unlike many SVG attributes, CSS styles typically have associated units.
Make sure you put units like 10px, instead of 10.

`selection.property(name[, value])`

`selection.text([value])`

`selection.html([value])`

`selection.append(type)` reference

If the specified type is a string, appends a new element of this type (tag name) as the last child of each selected element,
Or before the next following sibling in the update selection if this is an enter selection.
If the specified type is a function, it is evaluated for each selected element, in order.

`selection.insert(type[, before])`

`selection.remove()`

`selection.clone([deep])`

`selection.sort(compare)`

`selection.order()`

`selection.raise()`

`selection.lower()`

Joining

`selection.data([data[, key]])` reference

Joins the specified array of data with the selected elements, returning a new selection that represents the update selection.
Also defines the enter and exit selections on the returned selection, which can be used to add or remove elements to correspond to the new data.
The specified data is an array of arbitrary values (e.g., numbers or objects), or a function that returns an array of values for each group.

The data is specified for each group in the selection.

var matrix = [
  [11975,  5871, 8916, 2868],
  [ 1951, 10048, 2060, 6171],
  [ 8010, 16145, 8090, 8045],
  [ 1013,   990,  940, 6907]
];

var tr = d3.select("body")
    .append("table")
    .selectAll("tr")
    .data(matrix)
    .enter().append("tr");

var td = tr.selectAll("td")
    .data(function(d) { return d; })
    .enter().append("td")
      .text(function(d) { return d; });

If a key function is not specified, then the first datum in data is assigned to the first selected element, the second datum to the second selected element, and so on.

A key function may be specified to control which datum is assigned to which element, replacing the default join-by-index, by computing a string identifier for each datum and element.

<div id="Ford"></div>
<div id="Jarrah"></div>
<div id="Kwon"></div>
<div id="Locke"></div>
<div id="Reyes"></div>
<div id="Shephard"></div>

var data = [
  {name: "Locke", number: 4},
  {name: "Reyes", number: 8},
  {name: "Ford", number: 15},
  {name: "Jarrah", number: 16},
  {name: "Shephard", number: 31},
  {name: "Kwon", number: 34}
];

d3.selectAll("div")
  .data(data, function(d) { return d ? d.name : this.id; })
  .text(function(d) { return d.number; });

`selection.enter()` reference

Returns the enter selection: placeholder nodes for each datum that had no corresponding DOM element in the selection.

`selection.exit()` reference

Returns the exit selection: existing DOM elements in the selection for which no new datum was found.

`selection.datum([value])` reference

Gets or sets the bound data for each selected element.
Unlike selection.data, this method does not compute a join and does not affect indexes or the enter and exit selections.

Events

https://github.com/d3/d3-selection#handling-events

`selection.on(typenames[, listener[, capture]])`

`selection.dispatch(type[, parameters])`

`d3.event`

`d3.customEvent(event, listener[, that[, arguments]])`

`d3.mouse(container)`

`d3.touch(container[, touches], identifier)`

`d3.touches(container[, touches])`

`d3.clientPoint(container, event)`

Control

https://github.com/d3/d3-selection#control-flow

`selection.each(function)`

`selection.call(function[, arguments…])`

`selection.empty()`

`selection.nodes()`

`selection.node()`

`selection.size()`

Locals

https://github.com/d3/d3-selection#local-variables

D3 locals allow you to define local state independent of data.
D3 locals are scoped by DOM elements
On set, the value is stored on the given element.
On get, the value is retrieved from given element or the nearest ancestor that defines it.

`d3.local()`

`local.set(node, value)`

`local.get(node)`

`local.remove(node)`

`local.toString()`

Thinking with Joins tutorial

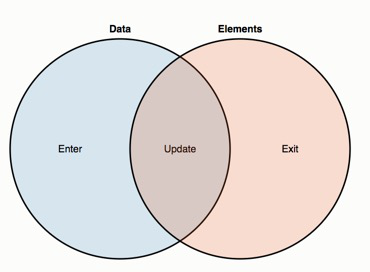

Data points joined to existing elements produce the update (inner) selection.
Leftover unbound data produce the enter selection (left)
Likewise, any remaining unbound elements produce the exit selection (right)

Consider:

svg.selectAll("circle")
  .data(data)
  .enter().append("circle")
    .attr("cx", function(d) { return d.x; })
    .attr("cy", function(d) { return d.y; })
    .attr("r", 2.5);

svg.selectAll("circle") returns a new empty selection
By .data(data), this selection is then joined to an array of data, resulting in three new selections that represent the three possible states
The update selection is returned by .data(data)
The missing elements are added to the SVG container by calling .append("circle") on the enter selection.

The beauty of the data join is that it generalizes.

var circle = svg.selectAll("circle")
    .data(data);

circle.exit().remove();

circle.enter().append("circle")
    .attr("r", 2.5)
  .merge(circle)
    .attr("cx", function(d) { return d.x; })
    .attr("cy", function(d) { return d.y; });

If the new dataset is smaller than the old one, the surplus elements end up in the exit selection and get removed. If the new dataset is larger, the surplus data ends up in the enter selection and new nodes are added.

https://bost.ocks.org/mike/join/

How Selections Work discussion

https://bost.ocks.org/mike/selection/

Grouping Elements

Selections are a subclass of array

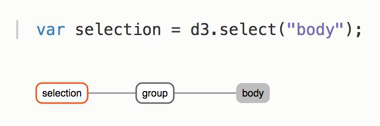

A selection is an array of groups, and each group is an array of elements.

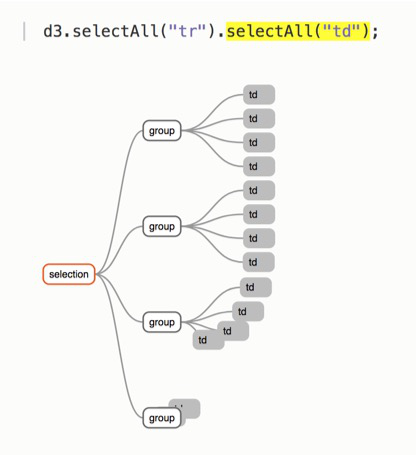

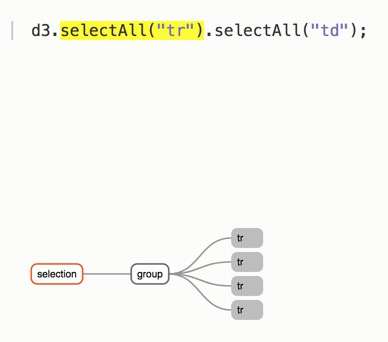

The only way for you to obtain a selection with multiple groups is selection.selectAll.
Every element in the old selection becomes a group in the new selection.
The second argument to your function (i) is the within-group index rather than the within-selection index.

Non-Grouping Operations

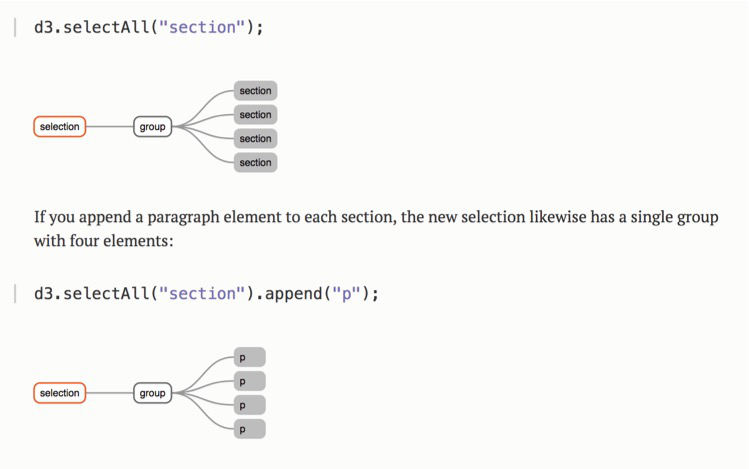

select preserves the existing grouping.
The append and insert methods are wrappers on top of select, so they also preserve grouping and propagate data.

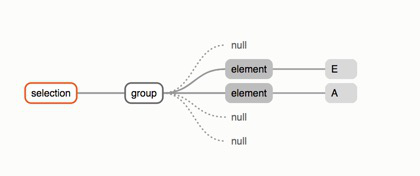

Null Elements

Groups can contain nulls to indicate missing elements.
Nulls are ignored for most operations.

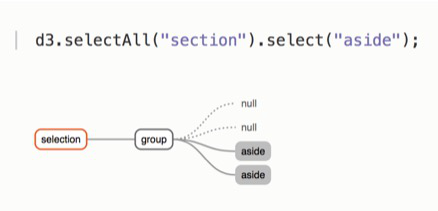

For example: if only the last two sections have asides:

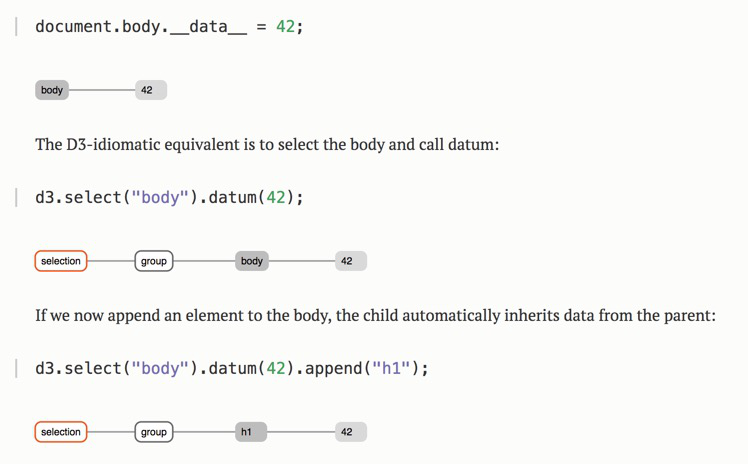

Bound to Data

Data is not a property of the selection, but a property of its elements.
When you bind data to a selection, the data is stored in the DOM rather than in the selection
Data is assigned to the __data__ property of each element.

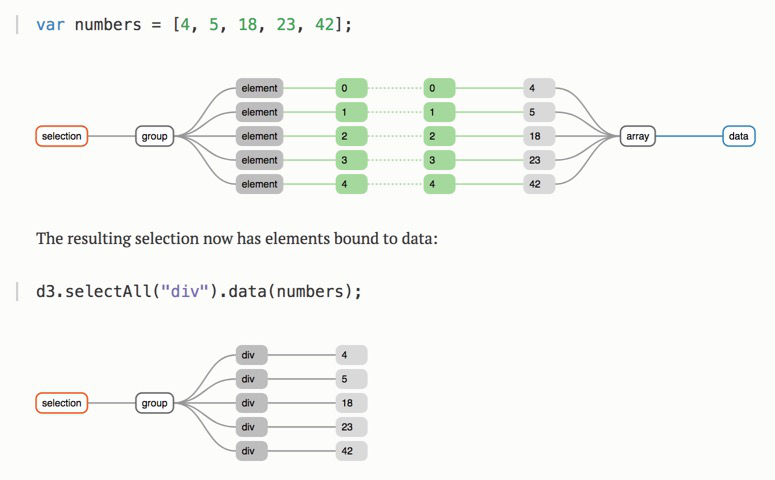

What is Data?

selection.data defines data per-group rather than per-element

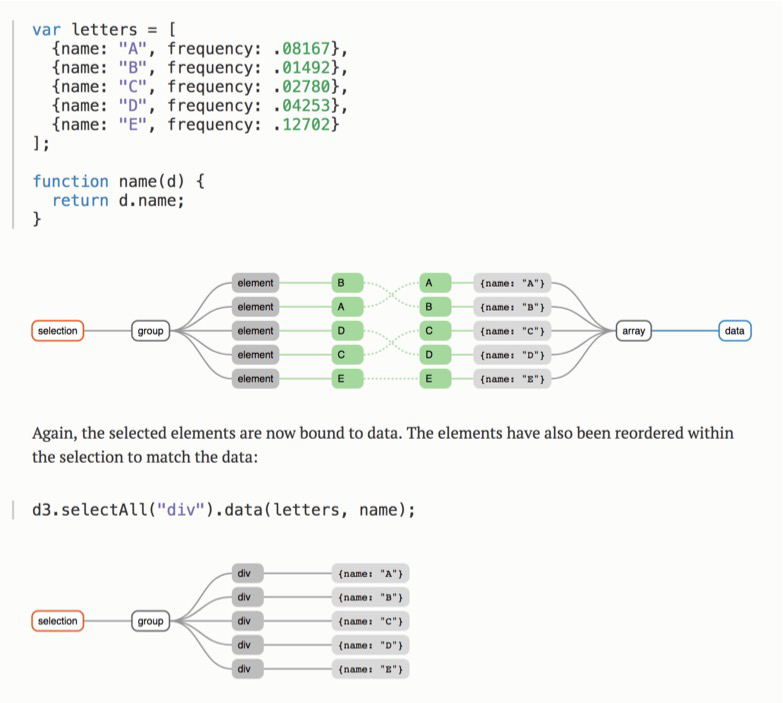

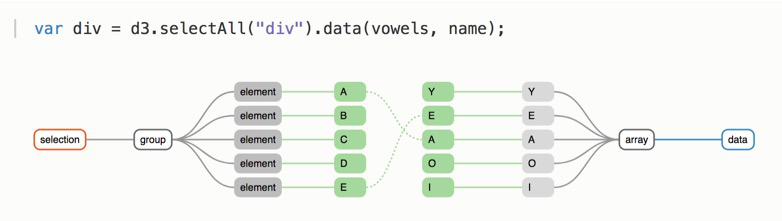

The Key to Enlightenment

Joining by index is convenient if your data and elements are in the same order.

The key function returns the key for a given datum or element. — The `key` function returns the key for a given datum or element.

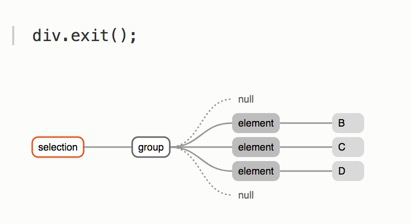

Enter, Update and Exit

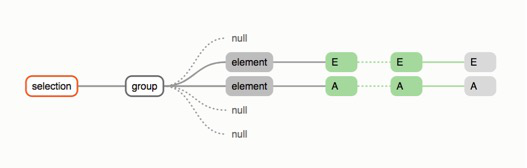

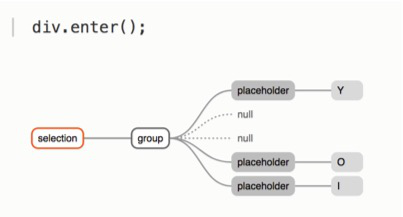

While update and exit are normal selections, enter is a subclass of selection. This is necessary because it represents elements that do not yet exist. — While `update` and `exit` are normal selections, `enter` is a subclass of selection. This is necessary because it represents elements that do not yet exist.

An enter selection contains placeholders rather than DOM elements;
These placeholders are simply objects with a __data__ property

enter.append has a convenient side-effect: it replaces null elements in the update selection with the newly-created elements from the enter selection. Thus, after enter.append, the update selection is modified to contain both entering and updating elements.

Nested Selections discussion

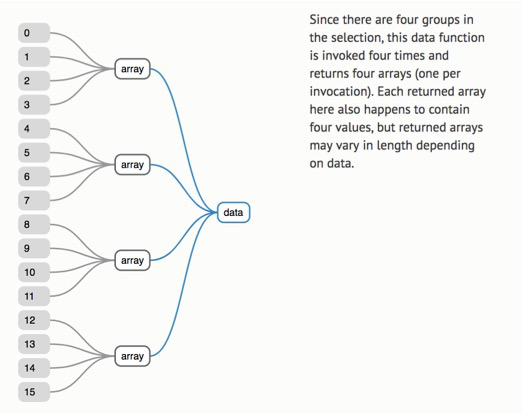

Pass a function to selection.data()

let matrix = [
  [ 0,  1,  2,  3],
  [ 4,  5,  6,  7],
  [ 8,  9, 10, 11],
  [12, 13, 14, 15],
];

let td = d3.selectAll("tbody tr")
  .data(matrix)
  .selectAll("td")
  .data(d => d); // d is matrix[i]

https://bost.ocks.org/mike/nest/

General Update Patterns discussion

let text = g.selectAll('text').data(data);

// UPDATE
text.attr('class', 'update');

// ENTER
text.enter().append('text')
    .attr('class', 'enter')
  .merge(text)
    .text(d => d); // place common things

// EXIT
text.exit().remove();

Updates with transition()

let text = g.selectAll('text').data(data);
let t = d3.transition().duration(750);

// EXIT
text.exit()
    .attr('class', 'exit')
  .transition(t)
    .attr('y', 0)
    .remove();

// UPDATE
text.attr('class', 'update');
  .transition(t)
    .attr('x', (d, i) => i * 32);

// ENTER
text.enter().append('text')
    .attr('class', 'enter')
    .attr('y', -60)
    .text(d => d); // place common things
  .transition(t)
    .attr('y, 0)

Get the computed width and height for an arbitrary element howto

selection.node().getBBox()

https://stackoverflow.com/questions/21990857/d3-js-how-to-get-the-computed-width-and-height-for-an-arbitrary-element
