AWS IAM

Table of Contents

Reference

assume-role-policy

User (Replace root with an user name if restrict the role for a specific user)
{
  "Version": "2012-10-17",
  "Statement": {
    "Effect": "Allow",
    "Principal": {"AWS": "arn:aws:iam::123456789012:root"},
    "Action": "sts:AssumeRole",
  }
}
EC2

To attach the role to EC2 instances, an instance profile must be created.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {"Service": "ec2.amazonaws.com"},
      "Action": "sts:AssumeRole"
    }
  ]
}
Lambda
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "",
      "Effect": "Allow",
      "Principal": {"Service": "lambda.amazonaws.com"},
      "Action": "sts:AssumeRole"
    }
  ]
}

kinesis

Readonly
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "kinesis:Get*",
        "kinesis:DescribeStream"
      ],
      "Resource": [
        "arn:aws:kinesis:us-east-1:111122223333:stream/stream1"
      ]
    },
    {
      "Effect": "Allow",
      "Action": [
        "kinesis:ListStreams"
      ],
      "Resource": [
        "*"
      ]
    }
  ]
}
Writeonly
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "kinesis:PutRecord"
      ],
      "Resource": [
        "arn:aws:kinesis:us-east-1:111122223333:stream/*"
      ]
    }
  ]
}
Fullaccess
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "kinesis:*",
      "Resource": [
        "arn:aws:kinesis:us-east-1:111122223333:stream/stream1"
      ]
    }
  ]
}
Fullaccess on all streams
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "kinesis:*",
      "Resource": [
        "arn:aws:kinesis:*:111122223333:stream/*"
      ]
    }
  ]
}

s3

Programmatic Access
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": ["s3:ListBucket"],
      "Resource": ["arn:aws:s3:::test"]
    },
    {
      "Effect": "Allow",
      "Action": [
        "s3:PutObject",
        "s3:GetObject",
        "s3:DeleteObject"
      ],
      "Resource": ["arn:aws:s3:::test/*"]
    }
  ]
}
AWS Console Access
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:GetBucketLocation",
        "s3:ListAllMyBuckets"
      ],
      "Resource": "arn:aws:s3:::*"
    },
    {
      "Effect": "Allow",
      "Action": ["s3:ListBucket"],
      "Resource": ["arn:aws:s3:::test"]
    },
    {
      "Effect": "Allow",
      "Action": [
        "s3:PutObject",
        "s3:GetObject",
        "s3:DeleteObject"
      ],
      "Resource": ["arn:aws:s3:::test/*"]
    }
  ]
}

Topics

IAM Role

Assume Role Policy

Assume Role Policy describes how the role is used for. This is related to AWS STS(Security Token Service); Following is an example on a role for EC2:

{
  "Version": "2012-10-17",
  "Statement": {
    "Effect": "Allow",
    "Principal": {"Service": "ec2.amazonaws.com"},
    "Action": "sts:AssumeRole"
  }
}

And it also requires its actual permissions:

{
  "Version": "2012-10-17",
  "Statement": {
    "Effect": "Allow",
    "Action": "s3:ListBucket",
    "Resource": "arn:aws:s3:::example_bucket"
  }
}

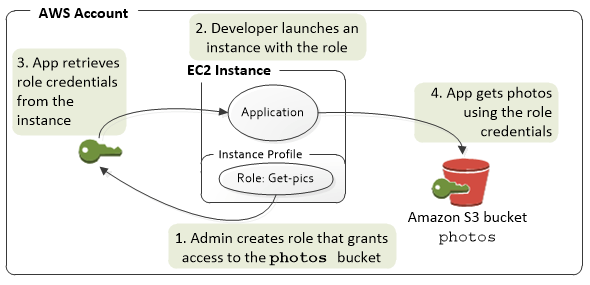

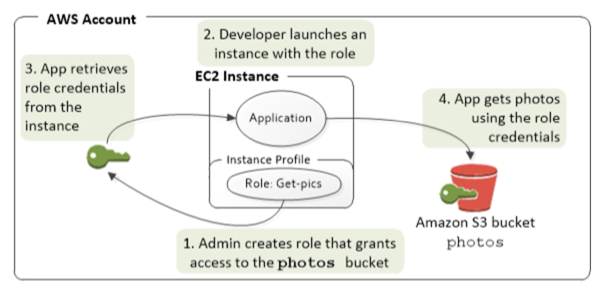

Instance Profiles

The instance profile contains the role and can provide the role's credentials to an application that runs on the instance. If you use the IAM console, the instance profile is managed for you and is mostly transparent to you. if you use the AWS CLI or API to create and manage the role and EC2 instance, then you must create the instance profile and assign the role to it as separate steps. Then, when you launch the instance, you must specify the instance profile name instead of the role name.

Policy Elements

Id

"Id": "cd3ad3d9-2776-4ef1-a904-4c229d1642ee"

Statement

"Statement": [{...},{...},{...}]

Effect

Sid

"Sid": "1"

Principal

To specify the user (IAM user, federated user, or assumed-role user), AWS account, AWS service, or other principal entity that is allowed or denied access to a resource.

Action

Resource

Not-

NotPrincipal, NotAction, NotResource are dvanced policy elements that explicitly matches everything except the specified list of the elements.

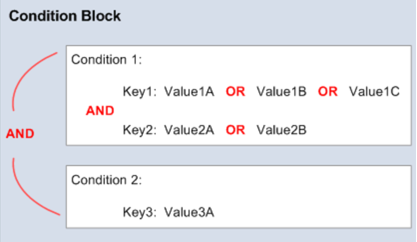

Condition

"Condition" :  {
      "DateGreaterThan" : {
         "aws:CurrentTime" : "2013-08-16T12:00:00Z"
       },
      "DateLessThan": {
         "aws:CurrentTime" : "2013-08-16T15:00:00Z"
       },
       "IpAddress" : {
          "aws:SourceIp" : ["192.0.2.0/24", "203.0.113.0/24"]
      }
}

The two values for aws:SourceIp are evaluated using OR. The three separate condition operators are evaluated using AND.

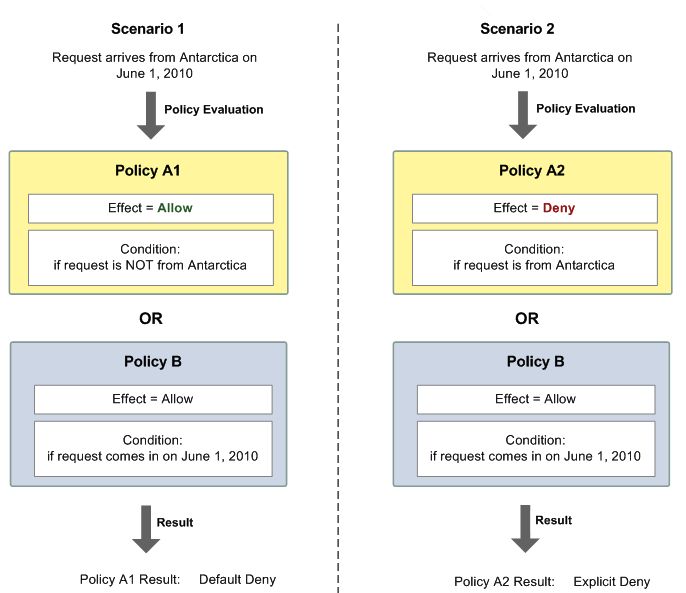

Policies Evaluation Logic

The enforcement code evaluates all user-based and resource-based policies that are applicable to the request(based on the resource, principal, action, and conditions). The order in which the enforcement code evaluates the policies is not important.

How-to

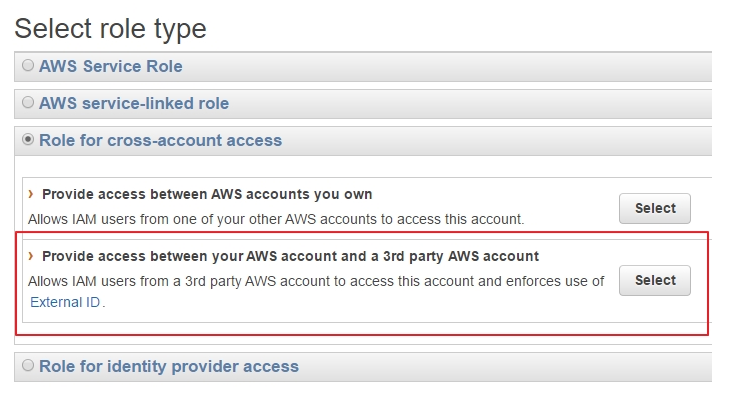

Share resources with an external AWS account via IAM Role

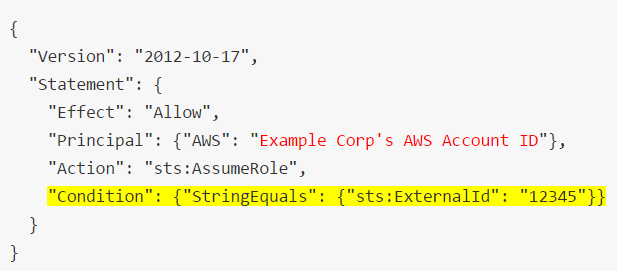

This creates an assume role policy like this:

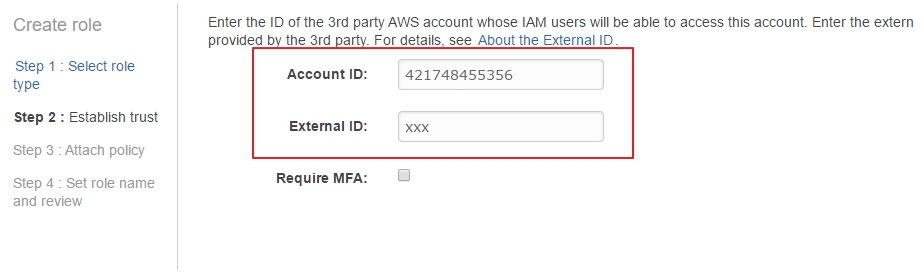

Principal is 3rd party's AWS account id. For example:

"AWS": "arn:aws:iam::123456789012:root"

But ironically, it's unable to specify an ExternalID when switching roles on AWS Console. They only can be specified through awscli or other programatic accesses.

An easy way to work around this is just delete that yellow line. This allows all users belong to target AWS Account to switch to the role.
